2-way analogic manifold for R744 (CO2) - 80 mm dia. pulse-free, glycerine-filled pressure gauges with external adjusting screw - HP 160 bar, LP 100 bar
Set of 3 steel braided hoses for CO2 (R744), lenght 150 cm., working pressure 200 bar (burst pressure 800 bar) - packaged in plastic case
Product available from June 2024

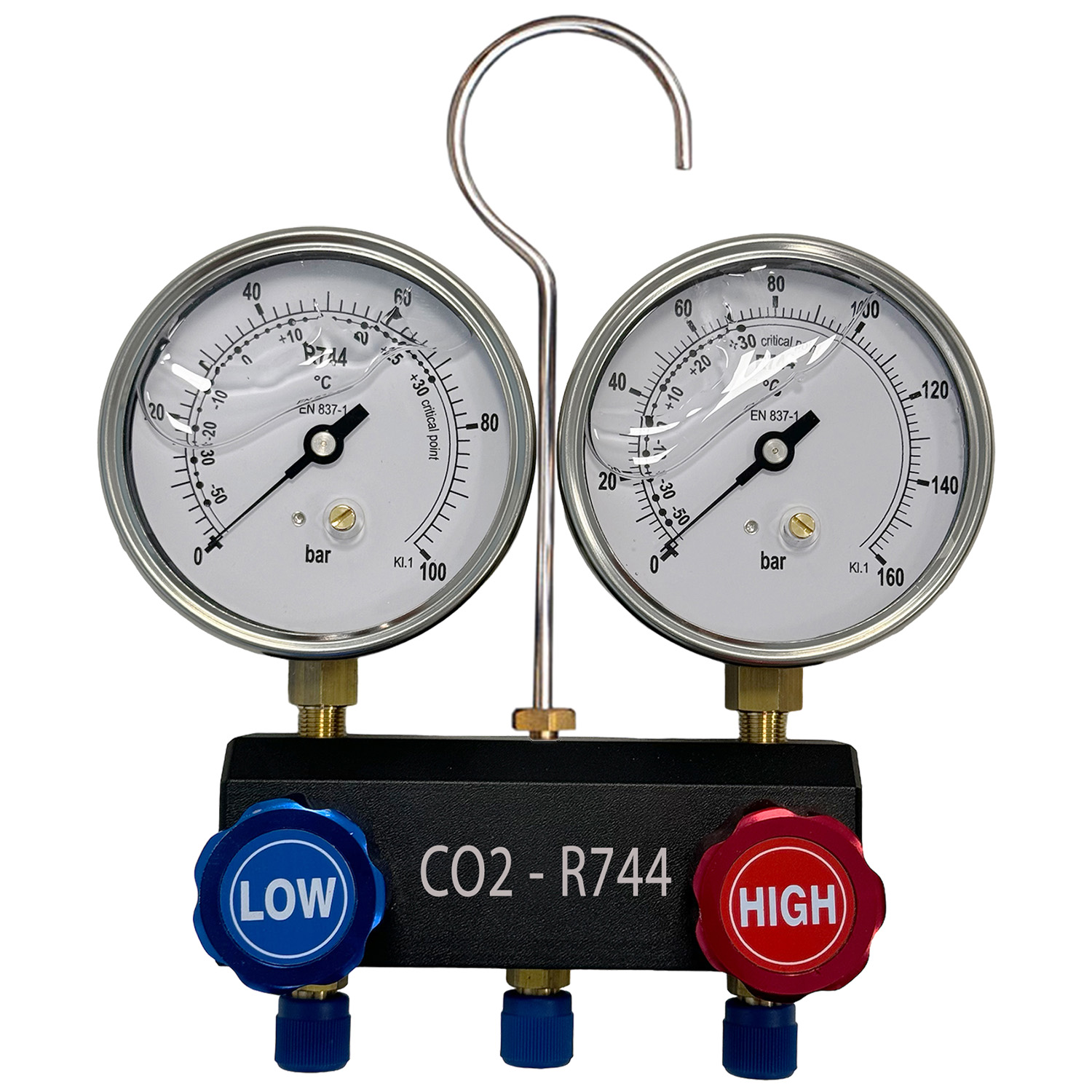

Professional 2-way pressure gauge assembly in glycerine bath, specifically for R744 (CO2), with external adjusting screw.
High (160bar) and low (100bar) pressure gauge Ø 80 mm in glycerine bath with external adjusting screw, with 1/4" connections.
Built to standard to withstand and detect the high pressures typical of carbon dioxide.

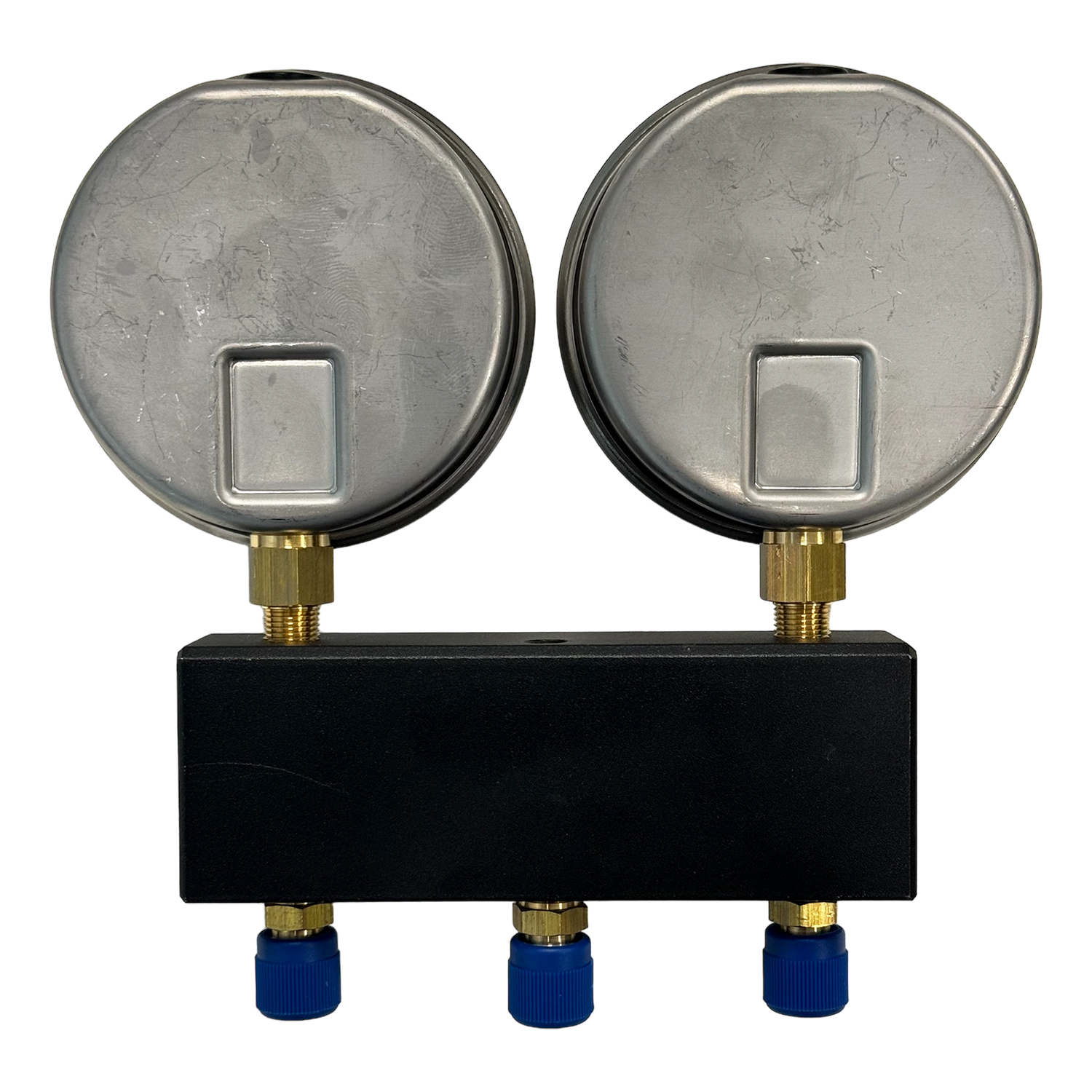

Analogic manifold - technical features:
- 2-way
- Connections 3 x ¼" SAE
- Black aluminium manifold body
- Aluminium knobs
- Pressure gauges with pressure reading scale for R744
- Pressure gauges diameter 80 mm. class 1 pulse-free type Made in Italy
- Pressure gauge BP 100 bar
- Pressure gauge AP 160 bar
- Pressure gauges with external adjustment screw

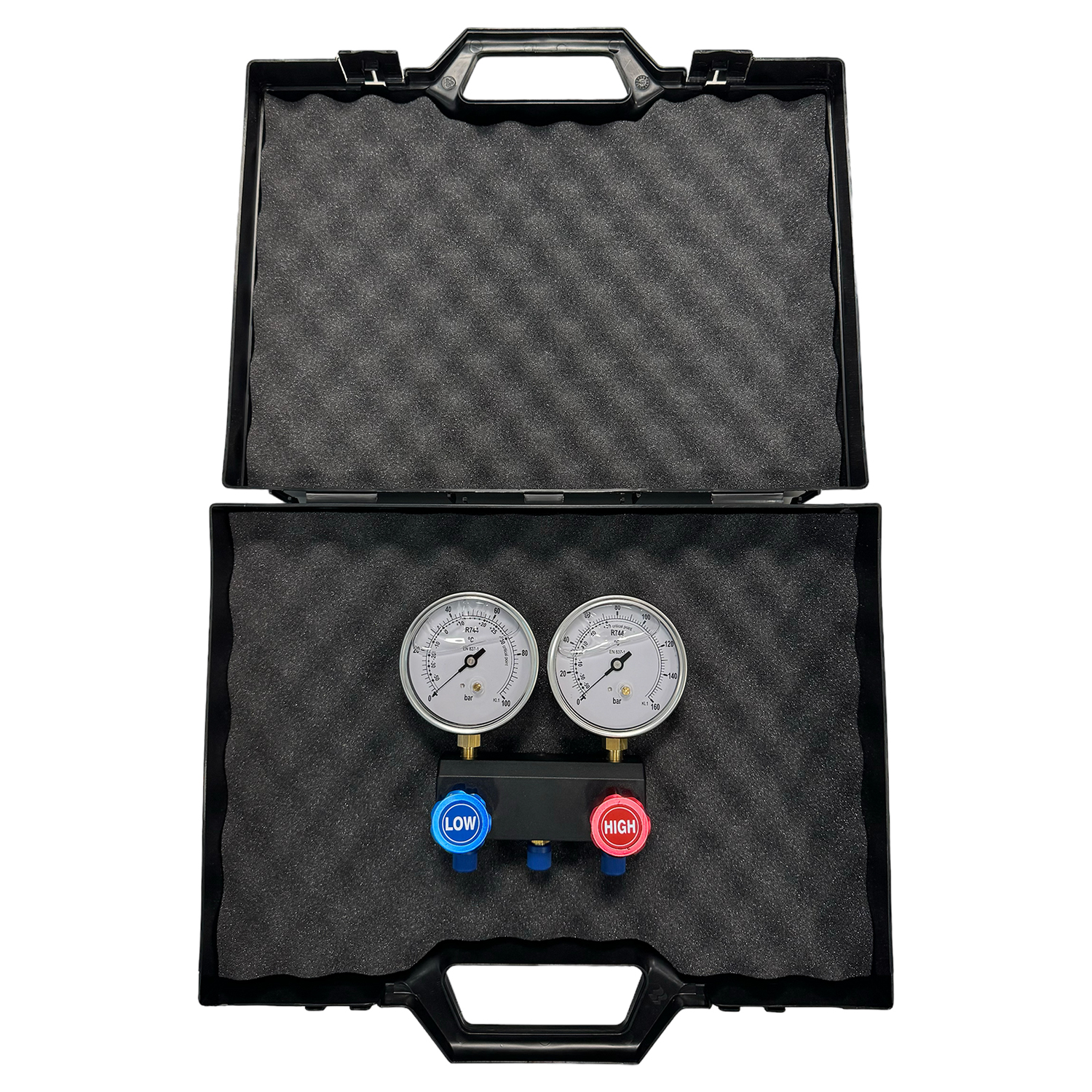

- Case included in the package

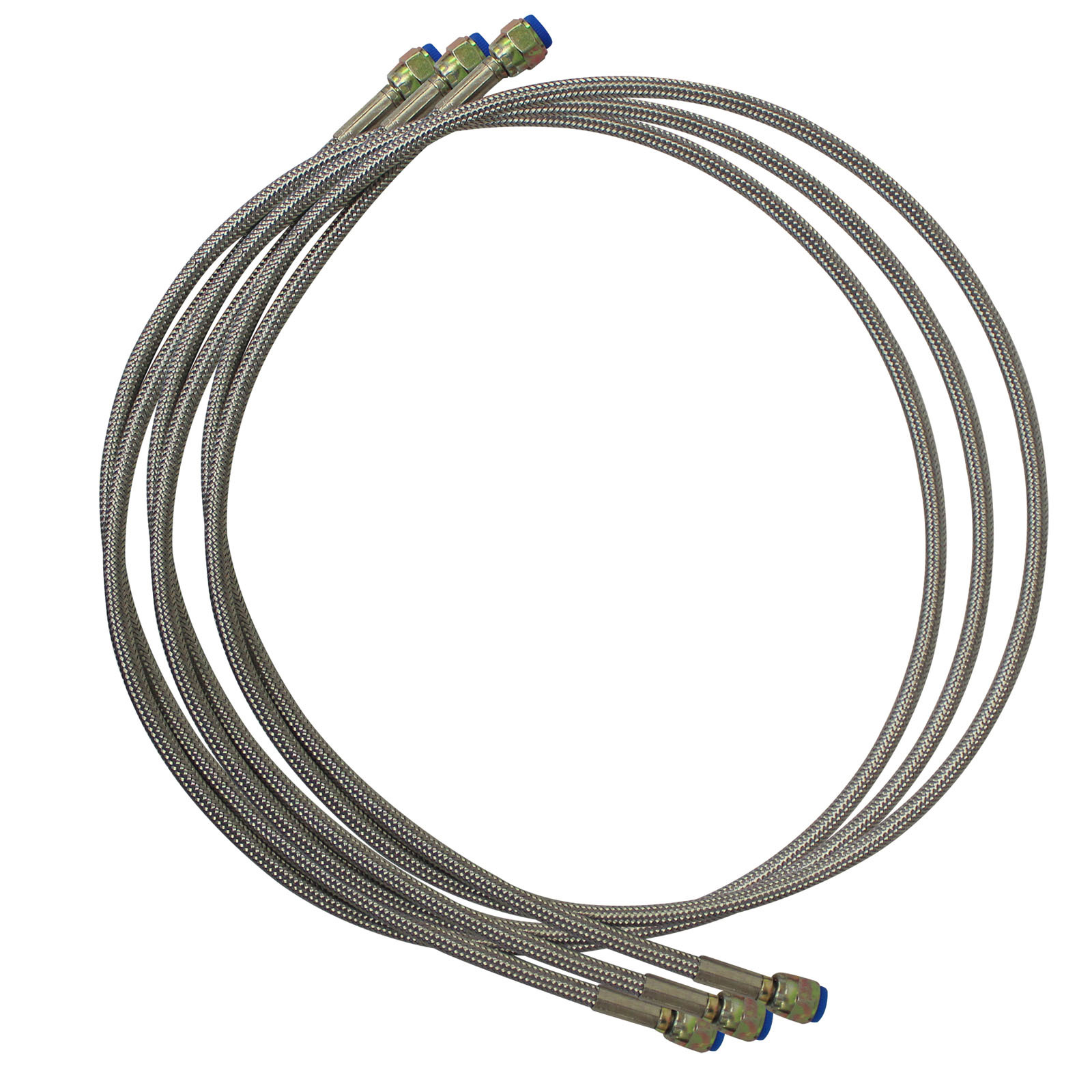

3 inox-braided hoses for CO2 - technical features:
- O.D of stainless steel rope: 0.18 mm Braided by 4 wires
- Section: PTFE Tube: 7 mm x 5 mm / Sandwich: 0.5 mm
- Outside Diameter 9 mm
- Thread 7/16-20UNF (¼" SAE)
- Working Pressure 200 bar
- Burst pressure 800 bar
Declaration of conformity with serial number of the instrument supplied (see facsimile of the declaration in the 'Technical Documentation' tab).
