2-way analogic manifold for R744 (CO2) - 80 mm dia. pulse-free, glycerine-filled pressure gauges with external adjusting screw - HP 160 bar, LP 100 bar
Product available from June 2024

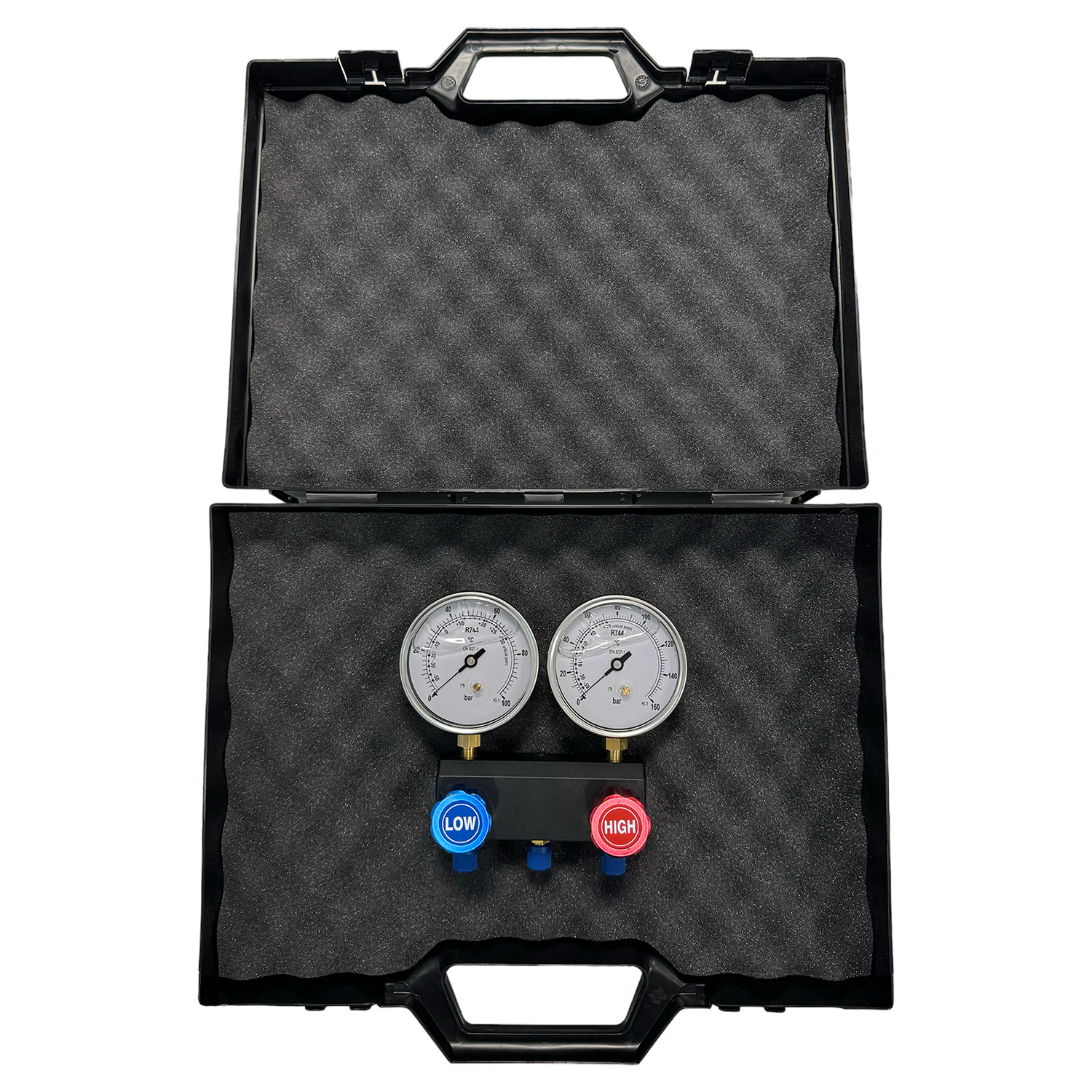

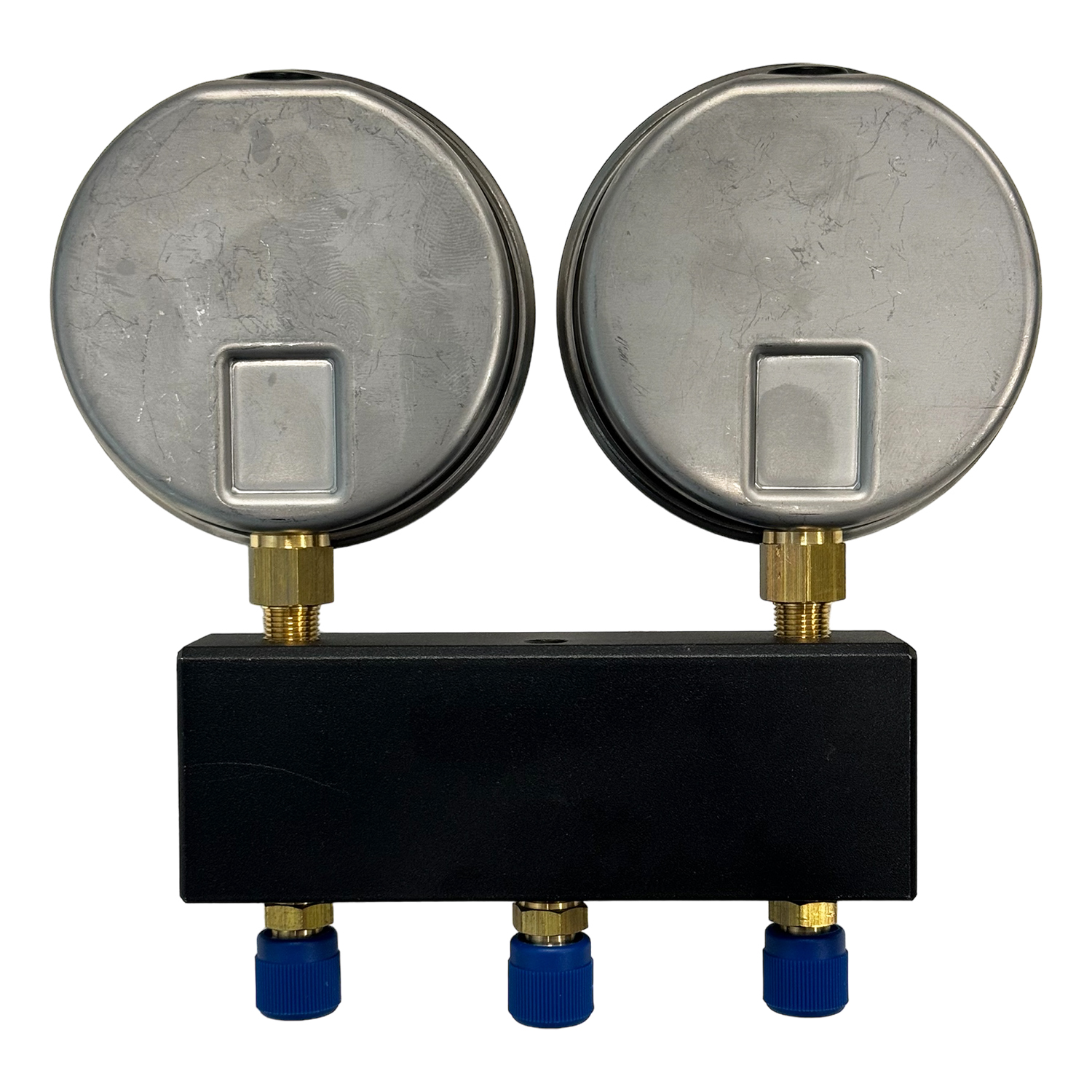

Professional 2-way pressure gauge assembly in glycerine bath, specifically for R744 (CO2), with external adjusting screw.
High (160bar) and low (100bar) pressure gauge Ø 80 mm in glycerine bath with external adjusting screw, with 1/4" connections.
Built to standard to withstand and detect the high pressures typical of carbon dioxide.
Analogic manifold - technical features:
- 2-way
- Connections 3 x ¼" SAE
- Black aluminium manifold body
- Aluminium knobs
- Pressure gauges with pressure reading scale for R744
- Pressure gauges diameter 80 mm. class 1 pulse-free type Made in Italy
- Pressure gauge BP 100 bar
- Pressure gauge AP 160 bar
- Pressure gauges with external adjustment screw
- Case included in the package
Declaration of conformity with serial number of the instrument supplied (see facsimile of the declaration in the 'Technical Documentation' tab).
